| MATERIAL OF CONSTRUCTION | |
|---|---|
| BODY | BRASS FORGED |
| BONNET | BRASS FORGED |
| DIAPHRAGM | RUBBER REINFORCED/FIRST STAGE STAINLESS STEEL |
| GAUGES | 60 MM DIA DUAL RANGE |
| SAFETY VALVE | SET AS PER DELIVERY PRESSURE RESET TYPE |
| INLET/OUTLET | AS PER IS OR AS PER PARTY'S REQUIREMENT |
| P.A.SCREW | BRASS / SS |
| SPECIFICATION | |
|---|---|
| FLUID MEDIA | NON CORROSIVE GASES |
| TEMP. RANGE | -40° TO +70° C |
| BODY PARTS | 1/4 N P T FEMALE |
| LEAKAGE | BUBBLE TYPE |
| WETTED ARE PARTS | ULTRASONICALLY CLEANED |
| INLET PRESSURE | 200 BAR MAXIMUM |
| DELIVERY PRESSURE | 1.5 / 3.5 / 10 BAR |
| MAXIMUM AIR FLOW | - |
| APPLICATION | |
|---|---|
| BRAZING, CUTTING, HEATING, WELDING, BEVERAGES, BUBBLING CONTROL, CALORIMETRY, CHROMATOGRAPHY, PROCESS CONTROL, PURGING, RESEARCH LAB. | |
| FLOW PRESSURE | LPM |
|---|---|
| 1.5 BAR | 300 |
| 3.5 BAR | 650 |
| 10 BAR | 1100 |
| TECHNICAL DATA SHEET | ||||||
|---|---|---|---|---|---|---|
| GAS SERVICE | CYLINDER | DELIVERY | CONNENTIONS | |||
| PRESSUR BAR | GAUGE RANGE BAR | PRESSURE BAR | GAUGE RANGE BAR | INLET | OUTLET | |

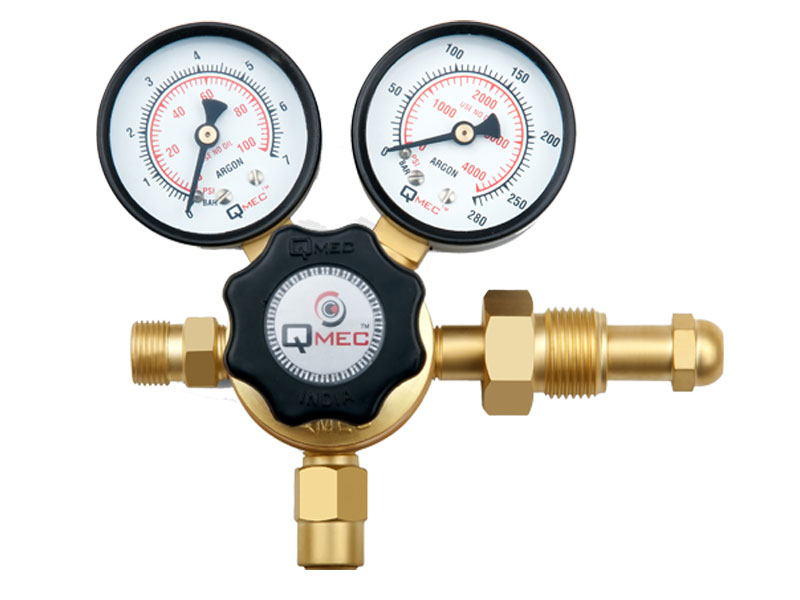

| ARGON | 150 | 0-300 | 0-4 | 0-7 | G 3-4 RH FEMALE | G 3/8 RH MALE |

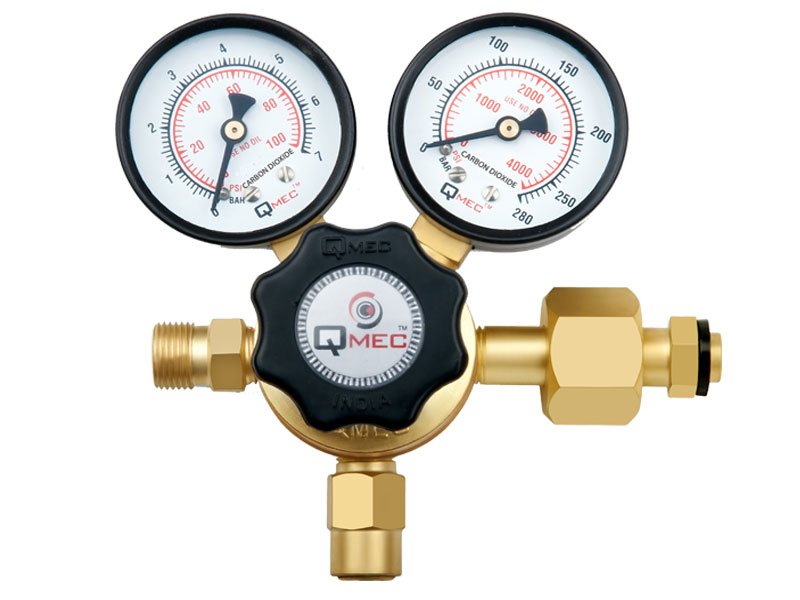

| CARBON DIOXIDE | 80 | 0-300 | 0-4 | 0-7 | W 21.8X14 RH FEMALE | G 3/8 RH MALE |
| HELIUM | 150 | 0-300 | 0-4 | 0-7 | G 3/4 RH FEMALE | G 3/8 RH MALE |

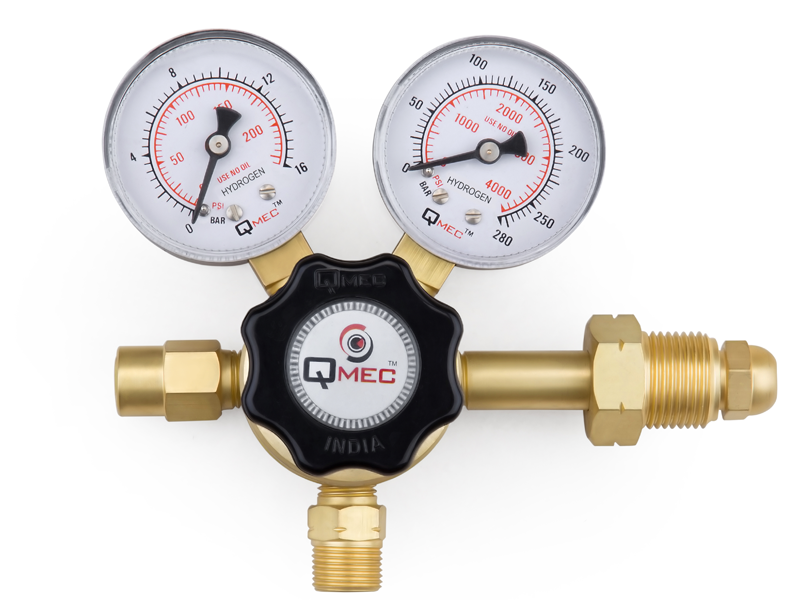

| HYDROGEN | 150 | 0-300 | 0-4 | 0-7 | G 5/8 RH MALE | G 3/8 RH MALE |
| NITROGEN | 150 | 0-300 | 0-4 | 0-7 | G 3-4 RH FEMALE | G 3/8 RH MALE |

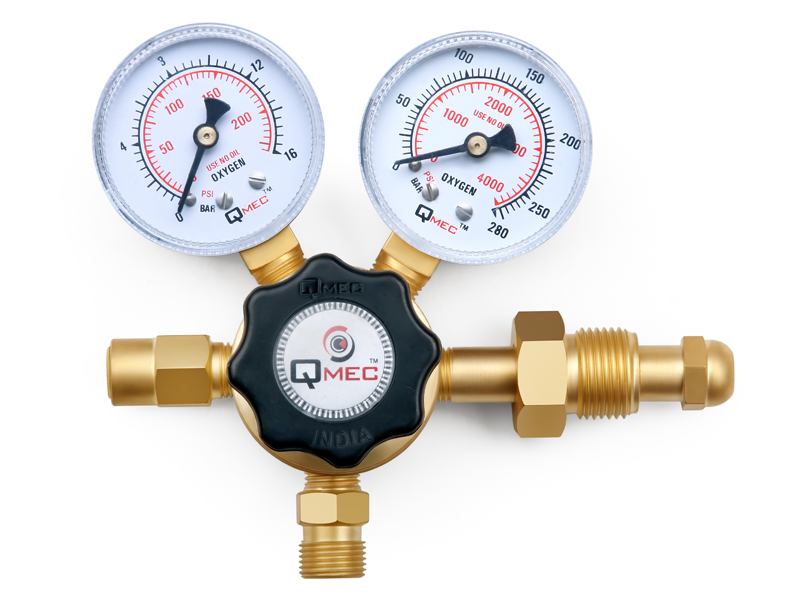

| OXYGEN | 150 | 0-300 | 0-4 | 0-7 | G 5/8 RH MALE | G 3/8 RH FEMALE |
| * ALSO AS PER CUSTOMER REQUIRMENT -+ AVALIABLE GUAGE RANGE 400 BAR FOR PRESSURE 200 BAR | ||||||
| INLET - IS 3224:2002 | OUTLET - ISO/TR 70740:1998 | ||||||
| 1 Bar=14.504 Psi = 1.0197 Kgf/cm2 | 1 Psi = 0.06894 Bar 0.07031 Kgf/Cm2 | 1 Kgf/Cm2 = 14.223 Psi = 0.98068 Bar | ||||||
